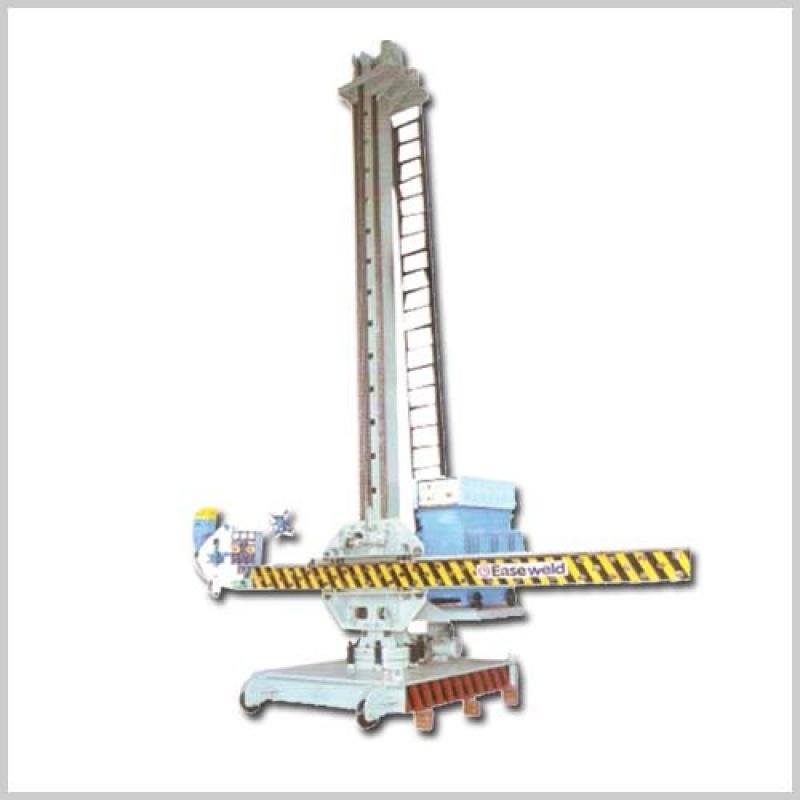

Easeweld Model EMHD Series 4 x 4mtrs. to 10 mtrs. Manipulator heavy duty Column & Boom are specially designed and built to with stand the harsh and rugged environments expected in the welding industry.

Salient Features:

»  A Slewing ring for column mounting, thereby providing a smooth 360 lockable rotation of the column around its axis by means of anti-friction taper roller Thrust Bearing's.

»  All vertical and horizontal rails are precisely machined in Single runs giving unsurpassed smooth and steadily travel.

»  Latest inverter drives fitted for variable speed of horizontal boom arm travel and rail travel car (optional). Warm gearbox for vertical travel via AC motor complete with brake for added safety.

»  High tensile roller Chain/Rope used for vertical travel with additional counter of balance system provides the smooth effortless vertical travel.

»  PB/ Bush bearings with eccentric pin mounting for easy adjustment of guiding pressure

»  IP 55 Control box and low voltage pendant control station.

»  Electrical as well as mechanical limiting mechanisms against overriding.

»  Standard safety features includes anti fall device and limit switches for all functions.

»  Internally trunked cabling.

»  Operators chair on the Boom.

Optional Features:

»  Motorized trolley base for mechanical travelling of the manipulators on rails - AC (VFD)

»  Motorized swiveling of the column with AC VFD.

»  X - Y Slide, manual or motorized, operated via the same pendant station.

»  Compressed air operated flux recovery unit.

»  Welding power source & wire feeder controller system.

High Lights:

»  Sophisticated MOSFET controls ensure soft starting and dynamic braking of motors.

»  High rated contactors for AC Motor.

»  Robust and vibration free construction.

»  Boom drive is through self - locked, backlash free worm reducer.

»  Accurately machined guides for both vertical and horizontal travel.

Technical Specifications:
