The Backbone of Material Handling Technology
Engineered for the Interaction of Man and Machine.
Backbone to build on
Through a solid commitment to research and development, we have applied our expertise to produce the most complete line of enclosed track workstation crane and monorail systems from one manufacturer in the world. Available in aluminum, steel, and stainless steel, these overhead
conveyance rails form the backbone for any material handling system.
The IR Zimmerman Rail Systems advantage:
» Lightweight and Ergonomic: Less than 1% rolling resistance
» Precision Running Surface: Aluminum, steel, and stainless steel available
» Modular and Flexible: Bolted together; no welding required
» Clean, Maintenance-free Operation: No lubrication required
» Safety: Designed to meet or exceed all national and international standards

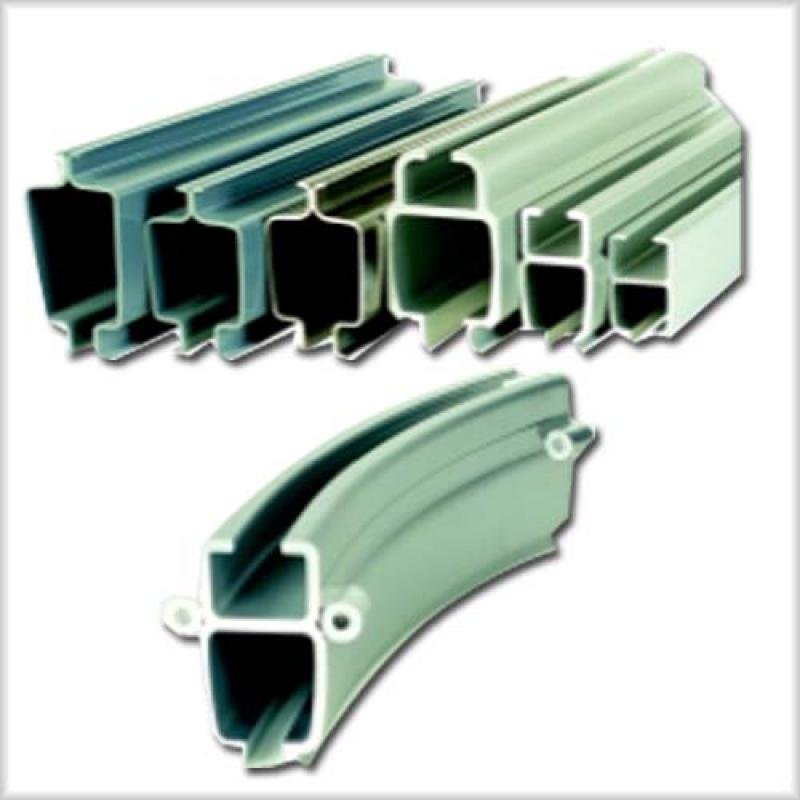

Quality Steel, Aluminum and Stainless Steel Rail Systems
IR Zimmerman rails are available in three different materials and five different sizes to meet your specific material handling needs. The Enclosed Rail Systems design reduces the accumulation of dirt and grime on the internal rolling surfaces, thus reducing rolling effort.
Aluminum
Lightweight and available for long spans
» Extruded: From aluminum alloy 6063-T6
» Clear Anodized: For a smooth, clean, corrosive-free surface
» ZRAT: Available in lengths up to 24 feet (7 meters)
» ZRA1: Available in lengths up to 30 feet (9 meters)
» ZRA2: Available in lengths up to 30 feet (9 meters)
» Strongbacking: Available for increased capacities
Steel
The strong, economical choice, ideal for heavy weight applications
• Roll Formed: From 9 gauge, A569 hot-rolled steel
• Spot Welded: With automated welder for maximum strength
• Powder Coat Painted: For durability and smoothness
• ZRS2: Available in lengths up to 24 feet (7 meters)
• ZRS3: Available in lengths up to 24 feet (7 meters)
• Strongbacking: Available for increased capacities
Stainless Steel
Engineered for cleanroom applications, ideal for the food and pharmaceutical industries
• Roll Formed: From 10 gauge, 316L stainless steel
• Spot Welded: With automated welder for maximum strength
• ZRSS: Available in lengths up to 24 feet (7 meters)
