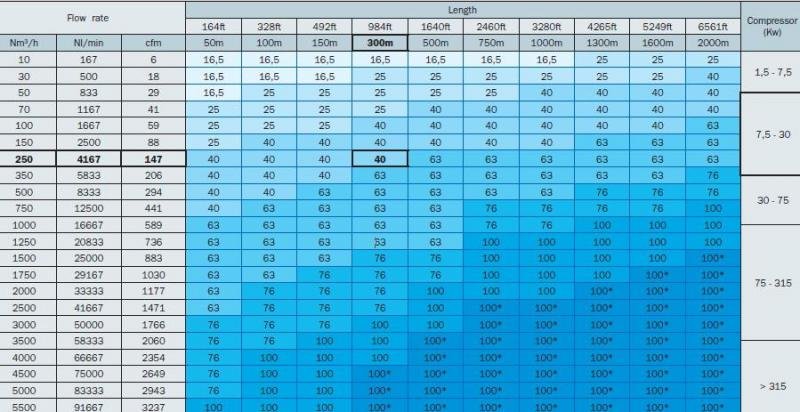

Pipe Selection Table

Flow rate			Length										Compressor (Kw)
Flow rate			164ft	328ft	492ft	984ft	1640ft	2460ft	3280ft	4265ft	5249ft	6561ft
Nm3/h	Nl/min	cfm	50m	100m	150m	300m	500m	750m	1000m	1300m	1600m	2000m
10	167	6	16.5	16.5	16.5	16.5	16.5	16.5	16.5	25	25	25	1,5 - 7,5
30	500	18	16.5	16.5	16.5	25	25	25	25	25	25	40
50	833	29	16.5	25	25	25	25	25	40	40	40	40
70	1167	41	25	25	25	25	40	40	40	40	40	40	7,5 -30
100	1667	59	25	25	25	40	40	40	40	40	40	63
150	2500	88	25	40	40	40	40	40	40	63	63	63
250	4167	147	40	40	40	40	63	63	63	63	63	63
350	5833	206	40	40	40	63	63	63	63	63	63	76
500	8333	294	40	40	63	63	63	63	63	76	76	76	30 - 35
750	12500	441	40	63	63	63	63	76	76	76	76	100
1000	16667	589	63	63	63	63	63	76	76	100	100	100
1250	20833	736	63	63	63	63	63	100	100	100	100	100	75 - 315
1500	25000	883	63	63	63	76	76	100	100	100	100	100*
1750	29167	1030	63	63	76	76	76	100	100	100	100*	100*
2000	33333	1177	63	76	76	76	100	100	100	100*	100*	100*
2500	41667	1471	63	76	76	76	100	100*	100*	100*	100*	100*
3000	50000	1766	76	76	76	100	100	100*	100*	100*	100*	100*
3500	58333	2060	76	76	100	100	100*	100*	100*	100*	100*	100*
4000	66667	2354	76	100	100	100	100*	100*	100*	100*	100*	100*	> 315
4500	75000	2649	76	100	100	100*	100*	100*	100*	100*	100*	100*
5000	83333	2943	76	100	100	100*	100*	100*	100*	100*	100*	100*
5500	91667	3237	100	100	100	100*	100*	100*	100*	100*	100*	100*
6000	100000	3531	100	100	100*	100*	100*	100*	100*	100*	100*	100*
